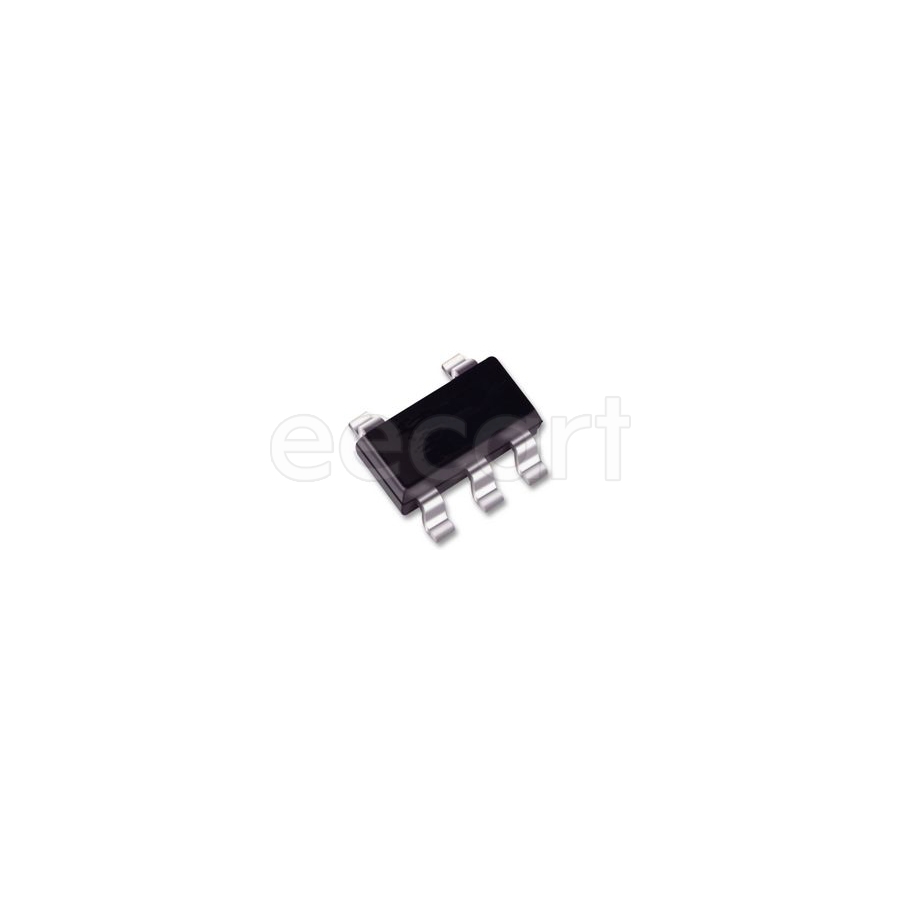

M74VHC1GT66DTT1G
Manufacturer:
On Semiconductor
Mfr.Part #:
M74VHC1GT66DTT1G
Datasheet:
Description:
Analogue Switch ICs TSOP-5 SMD/SMT Number of Channels:1 40 Ω 25 ns 25 ns
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Resistance | 40 Ω |
| Height | 1 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Circuits | 1 |
| Bandwidth | 180 MHz |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 200 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2 V |
| Power Dissipation | 200 mW |
| Number of Channels | 1 |
| Number of Bits | |
| Turn-On Delay Time | 25 ns |
| Turn-Off Delay Time | 25 ns |
| Propagation Delay | |
| High Level Output Current | |
| Low Level Output Current | |
| Number of Inputs | 1 |
| Supply Type | Single |
| Throw Configuration | SPST |
| Number of Outputs | 1 |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 months ago) |
| On Resistance (RON) | 40 Ω |
| Logic Family | |
| Configuration | 1 x SPST |
Stock: 5414
Distributors
pcbx
pcbxUnit Price$0.30008
Ext.Price$0.30008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30008 | $0.30008 |
| 10 | $0.18552 | $1.85520 |
| 50 | $0.15424 | $7.71200 |
| 100 | $0.12824 | $12.82400 |
| 500 | $0.12132 | $60.66000 |
| 1000 | $0.11477 | $114.77000 |
| 3000 | $0.10857 | $325.71000 |
| 5000 | $0.07235 | $361.75000 |
| 10000 | $0.04822 | $482.20000 |
